PMSM Commercial Big HVLS Industrial Ceiling Fans For Gyms 5m 0.7kw Energy Saving

Product Description

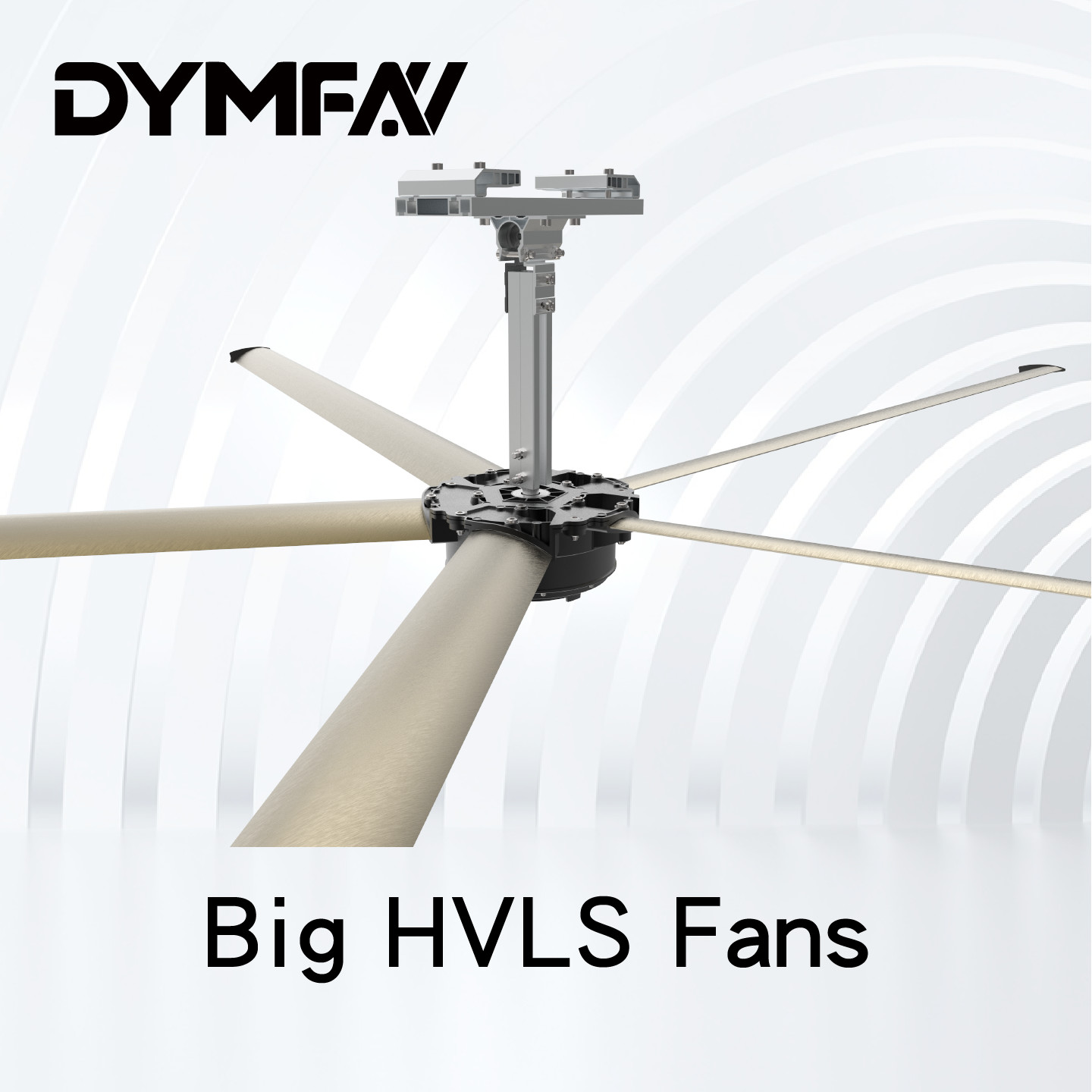

5m 0.7kw Energy Saving PMSM Big HVLS Fans For Gyms

“Light weight but with great wind power”

Our Energy Saving PMSM Big HVLS Fan D-500B has very low power consumption and can quietly provide sufficient airflow when installed on the roof. Very suitable for places such as industrial workshops, warehouses, or other public spaces.

To reduce weight and improve strength, we used 3D computer modeling to design a high-efficiency PMSM HVLS fan, and used aluminum alloy material to build the fan body. In addition, the blade uses a high-strength aluminum alloy material to increase strength, and the blade has a drill powder coating to reduce friction.

We've also redesigned a lighter motor which can still out put a lot of power.

 Technical parameters

​ How does it work

The principle behind the extra large ceiling fan is to move a very large amount of air by using large-diameter fan blades rotating at a low speed to break up the stratified air layer. The low speed of the fan makes it more efficient to convert electrical energy into useful laminar flow, rather than generating wasteful turbulence and resistance at higher speeds-which ultimately only generates unwanted heat. These large blades move more air than their smaller ceiling fans, usually 5-20 times, and have the same cooling effect. No other cooling system can be as energy-efficient as a system using HVLS industrial fans. In fact, research shows that companies can reduce or even completely eliminate the use of expensive air conditioning systems through optimized extra large ceiling fan solutions. Some extra large ceiling fan vendors provide 3D thermodynamic models of customer rooms, which proves the effectiveness of extra large ceiling fan as a cost-effective air cooling system.

 Features

※Energy saving: The maximum power of D-500B Big HVLS Fan is 700 watts.
※Big wind: D-500B has a maximum wind volume of 10000m³/min.
※Natural airflow: D-500B Big HVLS Fan can form wind like natural airflow.
※Lightweight fan main body: The total weight of D-500B (main body) is 49kg.
※Built-in PMSM motor: D-500B adopts no PMSM motor and gear box.
※Stepless speed regulation: Our controller is perfectly matched with the fan, and the fan speed can be adjusted steplessly.

 Details

 Application spaces

Our high efficiency PMSM HVLS fans can applicate in many different spaces:

Industial spaces: Manufacturing plants/work shops/warehouses

Public spaces: Stations/airports/schools/gyms

Commercial spaces: Exhibition halls/malls/hotels/cafes

Other spaces:Churchs/health clubs/livestock farms

​ Installations

We can provide a variety of installation methods  according to the building structure of the installation site, whether it is steel structure, concrete structure or truss structure, our high efficiency PMSM HVLS fans can be easily and safely mounted on.
