Product Description

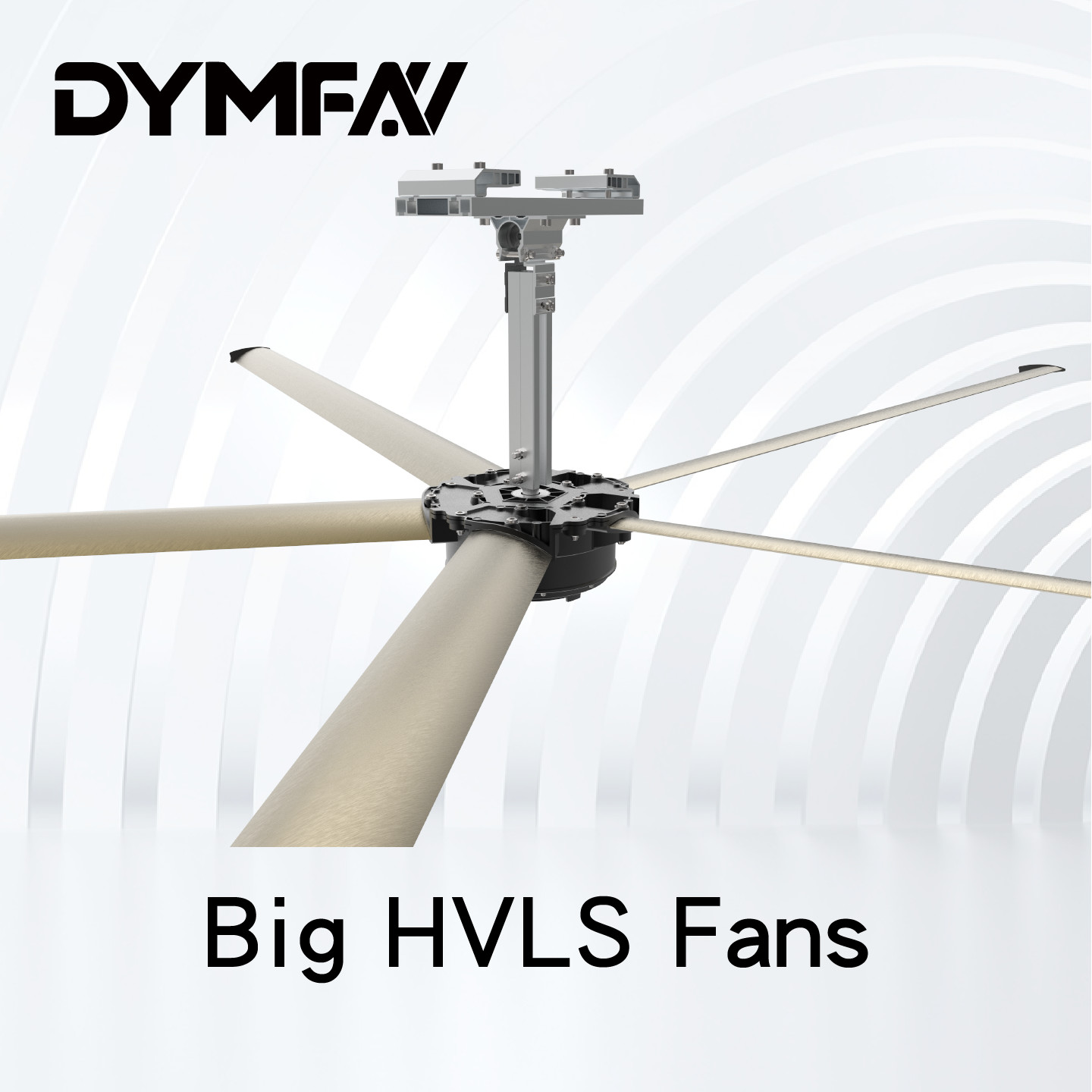

3.6m 0.7kw High Efficiency Big HVLS Fans For Gyms

“Light weight but with great wind power”

Our High Efficiency Big HVLS Fan D-500S can quietly deliver large airflow to cool large areas with low power consumption. Very suitable for places such as industrial workshops, warehouses, or other public spaces.
In order to improve weight and strength, we designed high -efficiency PMSM HVLS fans using 3D computer modeling, and used aluminum alloy materials to build the fans of the fan. In addition, the blade is made of high -strength aluminum alloy material to increase strength, and the blade is drill powder coating to reduce friction.
In addition, it was redesigned to reduce the weight of the motor, but it is still possible to get a large power efficiently.

 Technical parameters

​ How does it work

The principle of super-large ceiling fans is to move large amounts of air by using slow-rotating, large-diameter fan blades to break up the air stratification. The low speed of the fan makes it more efficient at converting electrical energy into useful laminar flow. Instead of creating high speed, useless turbulence and drag, you end up just creating unwanted heat.

These large blades move more air (typically 5-20 times) than smaller ceiling fans and have the same cooling effect. No other cooling system is as energy efficient as a system with HVLS industrial fans.

In fact, research shows that companies can reduce or even completely eliminate the use of expensive air conditioning systems through optimized extra large ceiling fan solutions. Some extra large ceiling fan vendors provide 3D thermodynamic models of customer rooms, which proves the effectiveness of extra large ceiling fan as a cost-effective air cooling system.

 Features

※Energy saving: The maximum power of D-500S big HVLS fan is 700 watts.
※Big wind: D-500S has a maximum wind volume of 10000m³/min.
※Natural airflow: D-500S large ceiling fan can form wind like natural airflow.
※Lightweight fan main body: The total weight of D-500S (main body) is 16kg.
※Built-in PMSM motor: D-500S adopts no PMSM motor and gear box.
※Stepless speed regulation: Our controller is perfectly matched with the fan, and the fan speed can be adjusted steplessly.

 Details

 Application spaces

Our high efficiency PMSM HVLS fans can applicate in many different spaces:

Industial spaces: Manufacturing plants/work shops/warehouses

Public spaces: Stations/airports/schools/gyms

Commercial spaces: Exhibition halls/malls/hotels/cafes

Other spaces:Churchs/health clubs/livestock farms

​ Installations

We can provide a variety of installation methods  according to the building structure of the installation site, whether it is steel structure, concrete structure or truss structure, our high efficiency PMSM HVLS fans can be easily and safely mounted on.
