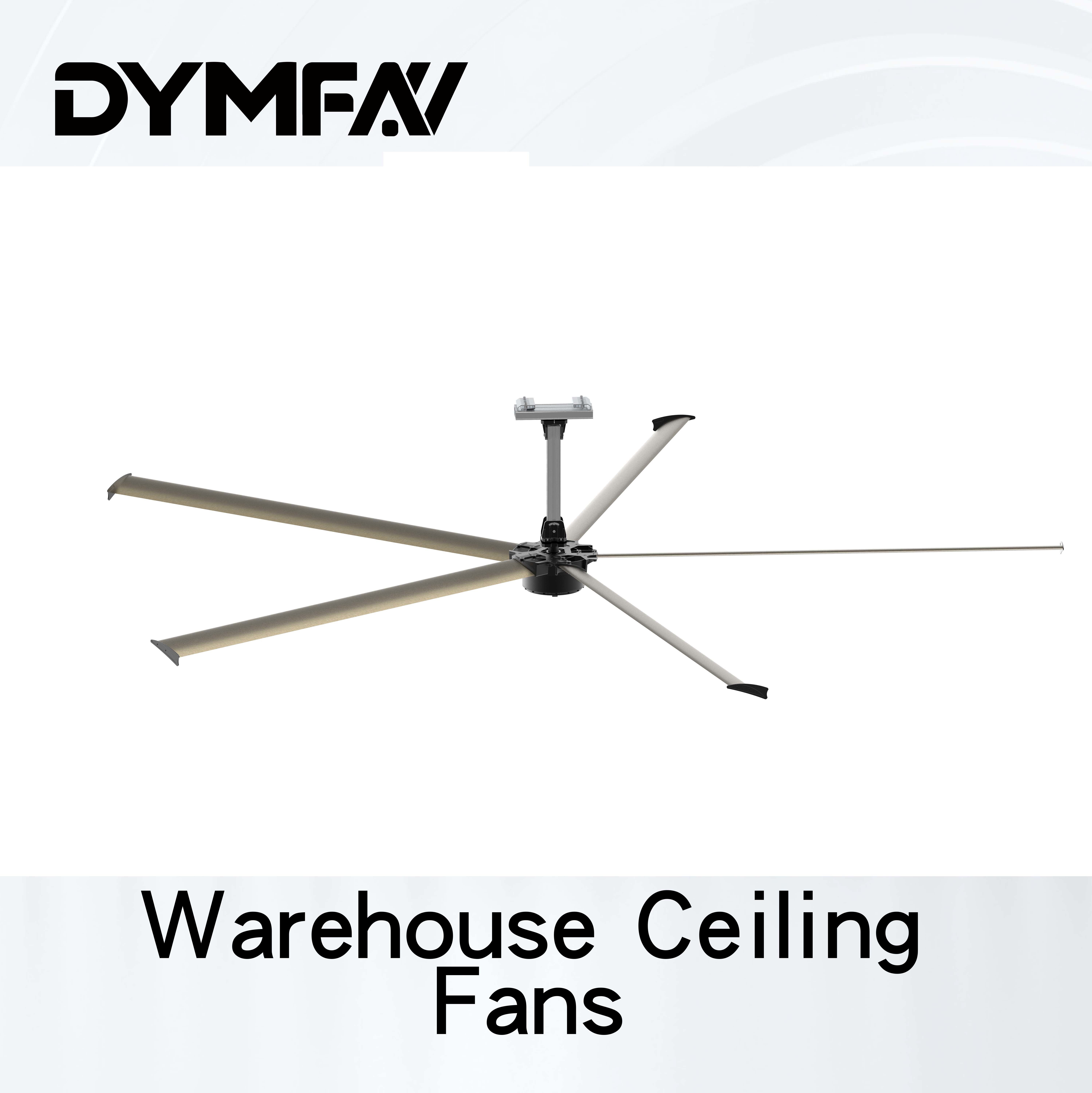

4.9m Big HVLS Fans AC Motor Big HVLS Ceiling Fan For Storerooms

Minimum Order Quantity : Negotiate Price : Negotiate
Packaging Details : Wood carton Delivery Time : 5-10 work days
Payment Terms : T/T Supply Ability : 100 sets per month
Place of Origin: Suzhou, China Brand Name: DYMFAN
Certification: ISO9001/CE Model Number: D-500S

Detail Information

Product Name: HVLS FAN Airflow: 10000 M³/min
Color: Aluminum / Custom Diameter: 3.6m
Power Supply: 220V/380V Max Power Consumption: 700W
Maximum Rev: 120 RPM Total Weight: 16 Kg
Motor Finish: Aluminium No. Of Blades: 5 Blades
Application: Warehouse,Industry,restaurant,gym Motor: PMSM Motor
High Light:

4.9m Big HVLS Fans


Storerooms Big HVLS Fans


AC Motor HVLS Ceiling Fan

Product Description

4.9m Fan Manufacturer For Ventilation AC Motor Big HVLS Ceiling Fan For Storerooms

· Different fan diameter: 1.5m, 2.4m, 2.5m, 3m, 3.7m, 4.3m, 4.9m, 5.5m, 6.1m, 7.3m
· Maxium Air flow: > 108m³/s
· Minium: 338m³/min
· AC OR DC motor
· Color can be customized
· Motor voltage/frequency/phase can be customized
· Application: For comerical or industrial, such as lobby, restaurant, coffee shop, library, hall, factory workwhop etc..


 Technical parameters


Model D-500S D-500A D-500B D-700D D-700E
Diameters 3.61 meter 4.3 meter 5 meter 6.6 meter 7.1 meter
Maximum rev 120RPM 95RPM 80RPM 65RPM 60RPM
Maximum power 700 watt 700 watt 700 watt 1500 watt 1500 watt
Total weight 16kg 17kg 18kg 47kg 49kg
Wind covering space 200-350 200-350 200-350 500-650 500-650
Mounting height 4-10meter 4-10meter 4-10meter 6-25meter 6-25meter
Air volume 10000m³/min 10000m³/min 10000m³/min 18000m³/min 18000m³/min
Mounting I-beams / Bar joists / Solid beams
Moter type BLDC Brush Less Direct Current
Voltage 220V, 50Hz
Motor finish Aluminium alloy case
Blade numbers 5 blades
Applications Factories / Warehouses / Dining halls / Churches / Gyms / Stations / Farms



​ How does it work


4.9m Big HVLS Fans AC Motor Big HVLS Ceiling Fan For Storerooms 0

The principle of super-large ceiling fans is to move large amounts of air by using slow-rotating, large-diameter fan blades to break up the air stratification. The low speed of the fan makes it more efficient at converting electrical energy into useful laminar flow. Instead of creating high speed, useless turbulence and drag, you end up just creating unwanted heat.

These large blades move more air (typically 5-20 times) than smaller ceiling fans and have the same cooling effect. No other cooling system is as energy efficient as a system with HVLS industrial fans.


In fact, research shows that companies can reduce or even completely eliminate the use of expensive air conditioning systems through optimized extra large ceiling fan solutions. Some extra large ceiling fan vendors provide 3D thermodynamic models of customer rooms, which proves the effectiveness of extra large ceiling fan as a cost-effective air cooling system.




※Energy saving: The maximum power of D-500S big HVLS fan is 700 watts.
※Big wind: D-500S has a maximum wind volume of 10000m³/min.
※Natural airflow: D-500S large ceiling fan can form wind like natural airflow.
※Lightweight fan main body: The total weight of D-500S (main body) is 16kg.
※Built-in PMSM motor: D-500S adopts no PMSM motor and gear box.
※Stepless speed regulation: Our controller is perfectly matched with the fan, and the fan speed can be adjusted steplessly.



4.9m Big HVLS Fans AC Motor Big HVLS Ceiling Fan For Storerooms 1

4.9m Big HVLS Fans AC Motor Big HVLS Ceiling Fan For Storerooms 2


 Application spaces


Our high efficiency PMSM HVLS fans can applicate in many different spaces:


Industial spaces: Manufacturing plants/work shops/warehouses

Public spaces: Stations/airports/schools/gyms

Commercial spaces: Exhibition halls/malls/hotels/cafes

Other spaces:Churchs/health clubs/livestock farms




4.9m Big HVLS Fans AC Motor Big HVLS Ceiling Fan For Storerooms 3


We can provide a variety of installation methods  according to the building structure of the installation site, whether it is steel structure, concrete structure or truss structure, our high efficiency PMSM HVLS fans can be easily and safely mounted on.

4.9m Big HVLS Fans AC Motor Big HVLS Ceiling Fan For Storerooms 4
